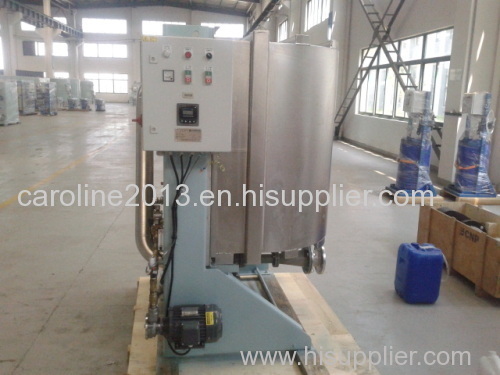

16T/Day Fresh Water Generator ( Plate type) , sea water desalting equipment

Plate type Fresh Water Generator (16T/Day)

General

Based on the general design scheme, the Fresh Water Generator which mainly consists of evaporating and condensing chambers, ejector equipped for vacuum, as well as relevant accessories for the system.

Furthermore the whole control system is to be designed as maker standard in according to our design purpose.Subject salinity meter is exclusively composed by maker, the design scheme concludes with temperature compensation.

The system designed under rough sea condition. That is for 32 ℃ sea water and 75 ℃cylinder jacket cooling water. Under such circumstance, the unit can reach distillate production capacity of 16 t/d. Each unit consists of a condenser and an evaporator installed in a same chamber.

Characteristics

The plant is a packaged unit, which is mounted on a base frame. All components and accessories. such as fresh water pump, interconnecting pipe-work as well as inner cable are connected prior to delivery.

The sea water pump independently supplied for on-site installation on board, which is to bepositioned under the light ballast line.

Specification

Type : FWG-16

Distillate produced: 16T/day

Heat consumption: 470KW

Residual salt content ≤10 ppm NaCl

Distillate temperature abt.42 ℃

Sea water quantity 40m3/h

Sea water pump suction pressure >0bar

Max. Sea water temperature 32 ℃

Total dissolved solids 35000 ppm

Feed water 2000 L/H

Weight Approx 1050 kg

Weight in operation Appox1250 KG

Heating Medium

Quantity : 40 m3/h

Operating pressure <4 bar

Inlet temperature 75_90 ℃

Temperature drop ≤12℃

EJECTOR, Sea water

Sea water quantity 40m3/h

Outlet back-pressure <0.7 bar

Inlet pressure >3.5 bar

SCOPE OF SUPPLY AND MATERIA

1. Cover : Stainless steel 316L

2. Condenser Titanium fin plate

3. Demister Stainless steel 316L

4. Evaporator Titanium fin plate

5. Pipework

a). For sea water Stainless steel 316L

b). For distillate Copper/Brass

6. Foundation frame Mild steel epoxy resin coated

7. Brine / Air ejector Cast Bronze

8. Distillate pump

Casing: Stainless Steel

Impeller: Stainless Steel

Shaft: Stainless Steel

Capacity: 1.2m3/h at 2bar, IP54, Class F

Power supply: 380/440VAC, 50/60Hz, 3P; 0.75kw

Control equipment and instrumentation

Control panel (IP54)

Salinity cells for distillate

Pressure gauges

Solenoid valve

Sample valve

Scale inhibitor tank and flowmeter

Standard spare parts for FWG

Item	Partname	description	quantity	PartNo
1.	Fuse	2A	10	01-99-99-99
2.	WhiteLamp	220VØ22 white	1	01-99-99-98
3.	RedBulb	220VRed	1	01-99-99-97
4.	Yellowbulb	220VYellow	2	01-99-99-96
5.	Electrode	Probeof salinometer	1	01-99-99-90
6.	MachineSeal offresh water pump	Forpump 20x15	1pc;	00-10-00-37
7.	Coilof solenoid valve	4025	1	01-99-99-91
8.	MAXI-VAPPLUS	Antiscalants	5L	05-00-00-08
9.	Cylindergasket		1	12-00-02-81
10.	Partitiongasket		1	12-00-02-82
