Fixed foam monitor for fire fighting system HYSS150FHR/F manufacturer from China China Hangyu marine Industry company

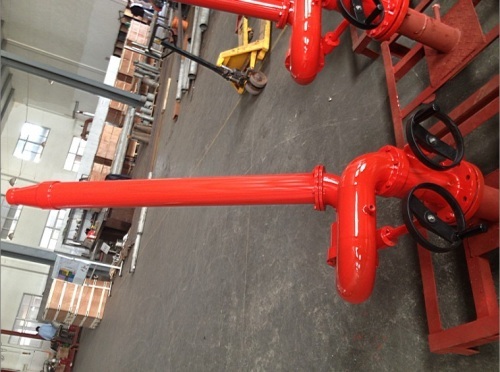

Fixed foam monitor for fire fighting system

Payment Terms:	T/T
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HYSS150FHR/F

Packing: Wooden case

Brand Name: HY

Production Capacity: 20 SETS/MONTH

Delivery Date: 30_60 days

Certificate: CCS, ABS, DNV , etc

Fixed foam fire monitor
capacity: 18000L/min
max pressure: 16bar
Inlet: Flange DN150 PN16

General

Accordingto the protected object, we select different fire fighting medium and thenconfirm the mode of fire fighting monitor among water monitor , foam monitor ,powder monitor and double pipe monitor , according the appliance style , thereare two kinds : fixed , portable . while according to the operation sytle ,there are five kinds , hand lever operation , handround operation , electricoperation , hydraulic operation and pneumatic operation

Specification

Model:HYSS150WHL/F,HYSS150FHR/F

Descriptions:Produced on requirement

The maxcapacity: 18000L/min

The maxpressure: 16bar

Inlet:Flange DN150 PN16

Outlet:Flangeconnection

Optionalinlet flange: DN200/ANSI6"

Rotationrange:

Horizontal:360º infinite

Vertical:+75º~-45º

Weight:~165Kg

Materials:

Body:Stainless steel/Anti-corrosion aluminum ally/Copper alloy

Sealing:NBR

Pipe:Hardaluminum alloy

Flange:Stainlesssteel/Anti-corrosion aluminum alloy/Copper alloy

Painting:Red RAL3000
