Containerized fire fighting system for fifi 1, fifi2

Payment Terms: T/T,L/C
Place of Origin: Chongqing, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Production Capacity: 10 sets/month
Delivery Date: 60 DAYS
Packing: Wooden case

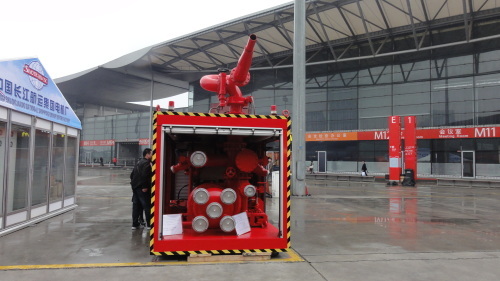

Containerized fifi system for marine
1.include fire pump ,fire monitor , marine engine , control box
2. certificate :ccs , BV

 Specifications
1. Firemonitor
Qty:   1unit
Type:   SS200EL
Columnarwater nozzle
Medium:seawater/water
Pressure:1.6MPa
Workpressure : 1.2MPa
Capacity:330L/S
Range:≥120m
Inletinterface:DN200PN16
Operationmode :Electroniccontrol(withEmergency hand wheel)AC380V 3Ph 50Hz
Vertical:+165°/-165°(it can beadjusted as request)
Elevation:   -10°/+70°   (it can beadjusted as request)
Body: stainless steel
Pipe : stainless steel
Impeller:copper alloy
Shaft:   stainless steel
Sealing :   NBR
2. Electric operated butterfly VALVE
3.Interface
4. watercollectormanifold
5.Diesel engine
Qty:   1unit
Type:   horizontal centrifugal pump(singel stage)
Material
Pump shell: Nodular cast iron
Impeller:   Ni-Al bronze
Shaft     :   Stainles steel 2Cr13
spigot shaft:   alloy
shaftsealing :   soft sealing
Type:   SSCXB300-250
series:   1
inlet flange:   DN300 PN16
outletflange :   DN250 PN25
Medium:   seawater
Workingtemperature :   32°C
Density:   1.03t/m3
Capacity:   330L/S
Head:   120m
NPSHr :   4.5m
self-suctionheight :5.5m
power:   82%
rated speed:   1800RPM
power:   570KW
painting:   red(RAL3000)
7.Hose
8.Controlbox
bigPhoto
