Containerized fifi system/FIFI 1 fire system for marine
| Payment Terms: | T/T |
| Place of Origin: | Chongqing, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Production Capacity:
10 sets/month
Delivery Date:
60 DAYS
Packing:
Wooden case

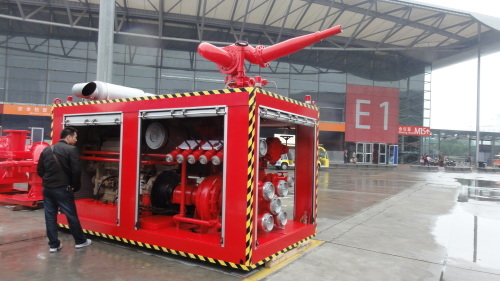

Containerized fifi system for marine
1.include fire pump ,fire monitor , marine engine , control box
2. certificate :ccs , BV
Specifications
1. Firemonitor
Qty: 1unit
Type: SS200EL
Columnarwater nozzle
Medium:seawater/water
Pressure:1.6MPa
Workpressure : 1.2MPa
Capacity:330L/S
Range:≥120m
Inletinterface:DN200PN16
Operationmode :Electroniccontrol(withEmergency hand wheel)AC380V 3Ph 50Hz
Vertical:+165°/-165°(it can beadjusted as request)
Elevation: -10°/+70° (it can beadjusted as request)
Body: stainless steel
Pipe : stainless steel
Impeller:copper alloy
Shaft: stainless steel
Sealing : NBR
2. Electric operated butterfly VALVE
3.Interface
4. watercollectormanifold
5.Diesel engine
Qty: 1unit
Type: horizontal centrifugal pump(singel stage)
Material
Pump shell: Nodular cast iron
Impeller: Ni-Al bronze
Shaft : Stainles steel 2Cr13
spigot shaft: alloy
shaftsealing : soft sealing
Type: SSCXB300-250
series: 1
inlet flange: DN300 PN16
outletflange : DN250 PN25
Medium: seawater
Workingtemperature : 32°C
Density: 1.03t/m3
Capacity: 330L/S
Head: 120m
NPSHr : 4.5m
self-suctionheight :5.5m
power: 82%
rated speed: 1800RPM
power: 570KW
painting: red(RAL3000)
7.Hose
8.Controlbox
