Capacity | 5.00 m3/h |
Power of pump | 2.2 KW |
Electric heater power : | Option |
Steam heater | 5/120 |
15ppm bilge alarm | Included |
oil content in the effluent water | ≤ 15 ppm |
standard | IMO MEPC.107(49 ) ,MARPOL73/78 |
heating mode | electric heating |
Certificate | CCS ,EC |
Base (channel steel ): | #8 2590*2000mm |
Height : | 1900mm |
GW (kg): | 4600kg |
Certificate :CCS, EC
Applicable ship :
less than 300KDWT above
Advantage :
1.Imported accessories
pump (England Mono), electric control box (Germany Schneider ) , 15ppm bilge alarm ( Germany DECKMA )
2.wide range of application
it can be used for seaport ,, dock , industry , petroleum , various vessels
(less than 1000DWT~3000KDWT above )
3.Meet the latest standard
IMO MEPC107.(49) ,MARPOL 73/78 Annex
Description

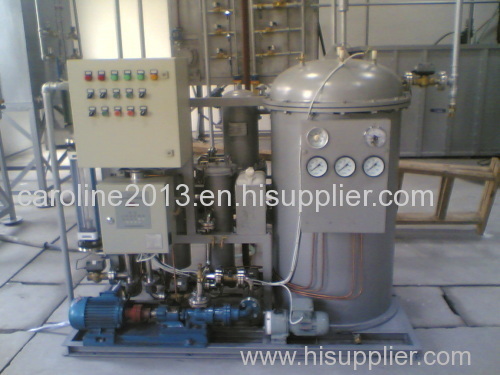

YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤15ppm.
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity
from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT.The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and
petroleum, besides in ship vessels. The effluent oil content from YWC can meet any standards of Environment Bureau in international
Types
0.25M3/H, 0.5M3/H, 1.0M3/H, 1.5M3/H , 2M3/H,2.5M3/H, 3M3/H ,4M3/H ,5M3/H
